AproCables adds connectors and adapters to their extensive offering of fiber optic products

Hybrid and standard products now available in custom configurations

Taipei, Taiwan, 21 December 2010 – AproCables has announced the availability of connectors and adapters on their eCommerce website www.aprocables.com. A comprehensive range of fiber optic adapters and connectors, known for their reliable performance, are now available for online order, with worldwide shipping available.

These products include a variety of optical fiber connector kits in lots of 100 pieces for FC, LC, SC, and ST connectors available in APC, MM, SM in .9mm, 2mm, and 3mm respectively. AproCables connectors are compliant with Telcordia, TIA/IEA, IEC and JIS interface specifications. They have one-piece construction and puff-proof design, precision anti-rotation key and corrosion resistant body, and free-floating ceramic or stainless steel ferrule. They also have low insertion loss and low back reflection. Read more...

Understanding ST adapters

Fiber optic adapters are used for linking two connectors and are essential for fiber optic assemblies. There are many types of adapters such as FC, LC, SC, ST, MTRJ, MU, MPO and hybrid adapters. ST adapters are inline and are connected to fiber optic connectors at both ends to ensure the correct alignment of the ferrules of the connectors.

ST adapters have a compact design, high precision alignment, low insertion and return loss and back reflection. They are usually available in metal or plastic housings with phosphor bronze or zirconia split sleeves. ST fiber optic adapters are used in applications such as premise installations, medical and sensor applications, telecom networks, test equipment, CATV, local area networks (LANs), datacomm networks and instrumentation. ST adapters are available in both singlemode and multimode. Read more...

Understanding LC adapters

Fiber optic adapters, also called mating sleeves, are used in fiber optic connections to link connectors of the same type. LC, FC, SC and ST are the main types of adapters available. LC adapters belong to the class of small form factor fiber optic adapters used in modern fiber optic networks. Developed by Lucent technologies, they connect LC fiber optic components.  Read more...

Understanding MU connectors

MU or Miniature Unit connectors, also called mini SC, are small sized SC connectors with 1.25mm ferrules. Developed by Nippon Telegraph and Telephone Corporation, MU connectors have the smallest single ferrule. These new generation fiber connectors are suitable for dense installations due to their small form factor. Read more...

Understanding ST connectors

Developed in the 1980s by AT&T, ST connectors belong to the older generation
connectors that have a metallic body, but are still commonly used in multimode

networks such as LANs for buildings and campuses. ST stands for straight tip
and consists of a plug and socket held in place with a half-twist bayonet lock.
Read more...

Understanding MT-RJ connectors

Fiber optic devices are in great demand, especially ones that can fit into tight places and support dense packing of connectors. This has given rise to the development of small form factor fiber connectors such as LC, MU, VF-45 and MT-RJ connectors.


MT-RJ stands for Mechanical Transfer Registered Jack and is one of most popular small form-factor fiber optic connectors.

Read more.

FC-ST Fiber Optic Adapters

We provide FC-ST adapter which provides interconnectivity between FC and ST connectors. It has a metal housing and either a precision zirconia or a rugged phosphor bronze sleeve. Flange mount and 'D' hole mount styles are available. Read more.

SC-ST Fiber Optic Adapters

We offer SC-ST adapter,it provides inter connectivity between SC and ST connectors. It has a metal housing and a precision zirconia  sleeve. Flange mount style is available. Read more.

FC Fiber Optic Adapter

We supply FC fiber optic adapters, including square type, single D type and double D types, in single mode and multimode versions. All these adapters are with metal housing and ceramic sleeves, for multimode FC fiber adapter there is optional bronze housing types.

The FC square fiber optic adapter is available in the standard body styles with nickel plated brass or nickel plated zinc housing. FC round fiber optic adapters come with a choice of D Flange (ø8.85 x 7.95mm) or double D Flange (ø9.35 x 7.65mm), and feature nickel plated brass housing for corrosion resistance. Read more.

ST Fiber Optic Adapter

We supply the ST fiber optic adapters, including the single mode and multimode types. These ST fiber adapters are simplex style, most are with zirconia sleeves, optional bronze sleeve adapters are available for multimode. Read more.

LC Fiber Optic Adapter

We supply LC fiber optic adapters, including simplex, duplex and quad types; LC fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-10 compatible. Each LC simplex adapter shall connect one LC connector pair in one module space.Each LC duplex adapter shall connect two LC connector pairs in one module space. LC adapters and adapter modules shall include phosphor bronze split sleeves for multimode applications or zirconia ceramic split sleeves for singlemode applications. Read more

SC Fiber Optic Adapter

We supply SC fiber optic adapters; these products are various types including single mode and multimode, zirconia sleeve and bronze sleeve, simplex and duplex versions. Standard female to female SC fiber optic adapter and hybrid SC fiber optic adapters are available.

Typical SC fiber optic adapters are with plastic housing and for single mode SC UPC it is blue color, single mode SC APC it is green color, multimode SC UPC is beige color. We also supply the metal housing SC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types. Read more

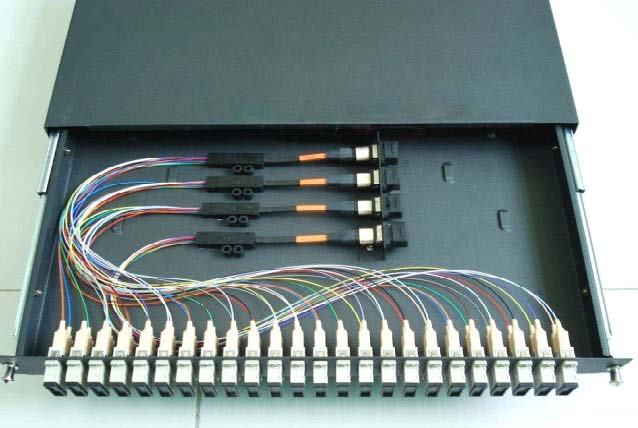

Aprocables 1U/A MTP® MPO Patch Panel

Aprocables 1U series MTP®  MPO  panels serve to protect MTP®  MPO  cassette and for interconnecting fiber optic cables. They are designed to enable a fiber network to be installed and commissioned in the short possible time. All the components are pre-assembled and easy to be installed to a  standard 19' cabinet. They are a perfect solution for optical fiber installations and management. This is a compact,simple and low cost solution for local network. Read more

Aprocables announced pulling eye fiber cable

Pulling eye fiber cable is a device that is fastened to a fiber cable. The hook can then be attached to the fiber pulling eye to pull the fiber cable through an inner duct, duct or small space. Alternatively, it is possible to simply tie the pulling rope to the strength member in a fiber cable. This is enough for very simple pulls with very low resistance. But for conduit runs, this is a dangerous practice since the knot may catch along the path and fiber may be broken. Multi-stranded  cable assemblies complete with a pulling eye are  available for easy
installation.  Simply pull the  cable via the pulling eye and then cut away the sheath  to reveal
the pre-terminated connectors of your choice -  ready to plug and play. Read more

MTP MPO Trunk Cable

The MTP MPO cabling system is ideally suited for a high density environment that demands space saving cable density and innovative cable management solutions.Simply install the MTP MPO trunk cable  within the building and connect to the rear of a MTP MPO  patch panel or ruggedised fan-Out. Read more

MTP-MPO Fiber Patch Cables

MT family is an array technology providing quick connection for 4, 8 or 12 fibers. It reduces time and cost of installation. Fiber alignment is achieved with high precision guide pins. The ferrules and connectors are manufactured to IEC 1754-5 and 61754-7 respectively.

Multimode connectors are flat polished, and single mode connectors are 8° angle-polished.Other end-face polishes are provided on request. Read more

Fiber optic E-2000 patch cords are designed for variety of applications of Telecommunication

Fiber optic E-2000 patch cords are designed for variety of applications of telecommunication, CATV, LAN, etc. E-2000 incorporates many innovative features to address the needs of users. Read more
